Space Saver Slimline Ovens

Page:  1  2  Back To Rack Ovens

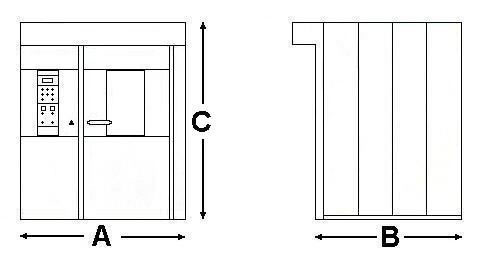

Space Saver Slimline Oven Diagram

Model Exterior Dimensions
A      B       C
wt
lbs
rack
cap
BTU
(000)		 electrical A
ROTORFAN 5070 44” x 65 ” * x 91” 1864 1 s 180 220 v 20
ROTORFAN 8 58” x 84 ” * x 96” 3197 2 s/ 1 d 300 220 v 20
Add 11.8” for eye brow canopy depth

Utility connections

      1. 220 v 3 ph 20/25 a neutral and ground located at rear top of oven
      2. 160,000/300,000 BTU/hr n gas @ 7” w.c. Located at rear of oven LEFT standard side approx. 20" from floor.
      3. Gas flue 8” double wall to go as straight up as possible do not use 90’s.
      4. Eye brow hood 8” single wall or double wall as preferred, located at front approximate center of oven approx 20” from front.
      5. 3/8” hot water line located at approx. center rear of oven. Pressure regulator is required with a gauge to be adjusted to 35 P.S.I.
      6. DRAIN LINE 3/4" located at REAR left standard.
      7. Oven must be installed on a non combustible and floor must be level
